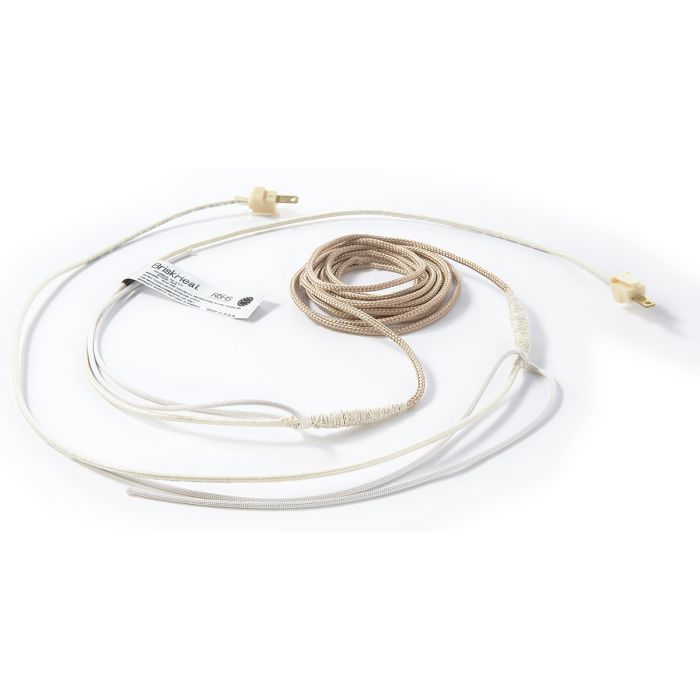

Heating Cords (HTC)
$66.00
SKU:HTC451005
BriskHeat HTC heating cords are a multi-stranded resistance wire heating element are designed for use on small tubes, vessels, or any application where space is limited. Made with a fiberglass outer sheath and rapid thermal response, these cords are flexible, durable and safe to use with electrically conductive surfaces when accurate heat is needed. Ideal for laboratory, R&D, gas tubing, production, maintece, temporary heat, and more.
- 2 ft (0.6 m) length
- 43 Watts
- 120V
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Additional Features:

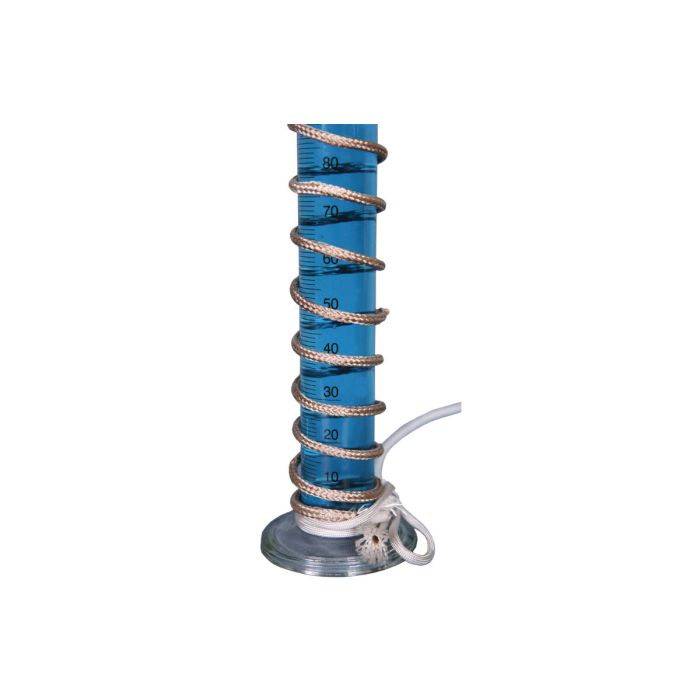

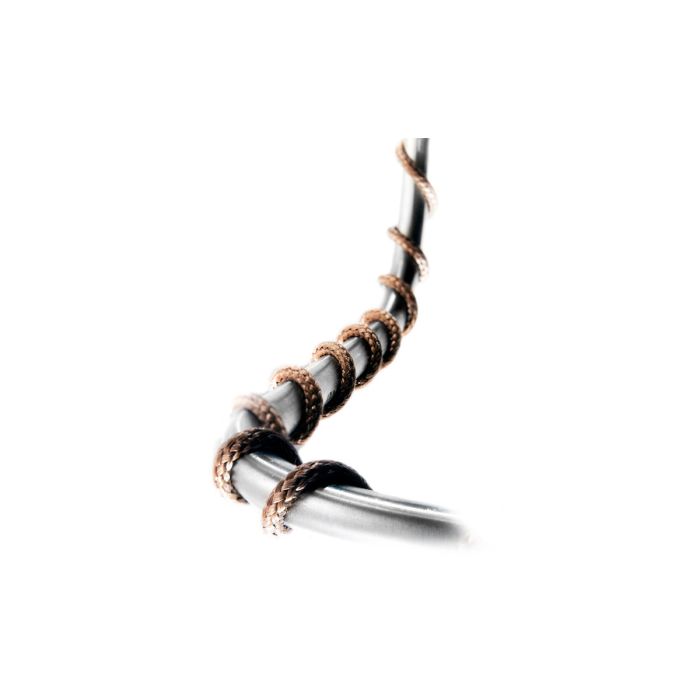

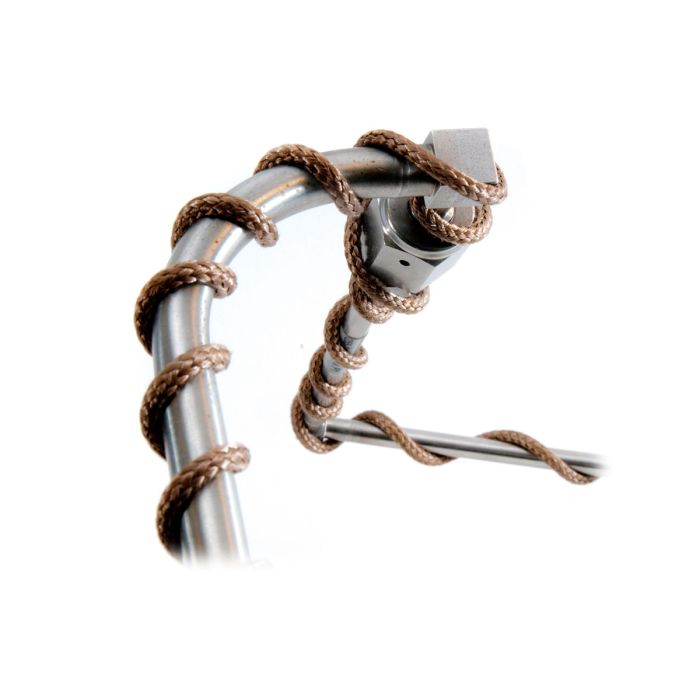

- Designed for use on small tubes, vessels, or any application where space is limited
- Exceptional flexibility - can be wrapped around objects as small as 1/8 in (3 mm) diameter
- Rapid thermal response
- Suitable for high temperatures
Ideal for:
- Viscosity Control
- Laboratory
- Temperature Maintenance
- Melting of Solids
Type: Non-Grounded
Maximum Exposure Temperature:
- Removable and Reusable: Up to 572°F (300°C)
- Single Installation Use: Up to 932°F (500°C)
Construction: Fiberglass
Heater Diameter: 0.19 in (4.8 mm)
Watt Density: 21 W/ft (68 W/m)
Minimum Bend Radius: 0.125 in (3 cm)
IP Rating: IP50
Lead Length: 2 ft (0.6 m)
Plug Type:
- Built-it split-plug design (120 V)
- Crimped Ferrule Leads (240 V)
| Part No. 120 VAC | Part No. 240 VAC | Cord Length ft (m) | Total Watts | Lead Length ft (m) |
| HTC451007 | N/A | 0.5 (0.15) | 17 | 2 (0.6) |
| HTC451006 | N/A | 1 (0.3) | 22 | 2 (0.6) |
| HTC451005 | N/A | 2 (0.6) | 43 | 2 (0.6) |
| HTC451001 | N/A | 3 (0.9) | 64 | 2 (0.6) |
| HTC451008 | N/A | 4 (1.2) | 82 | 2 (0.6) |
| HTC451002 | HTC452002 | 6 (1.8) | 135 | 2 (0.6) |
| HTC451009 | N/A | 8 (2.4) | 170 | 2 (0.6) |
| HTC451003 | HTC452003 | 12 (3.7) | 260 | 2 (0.6) |
