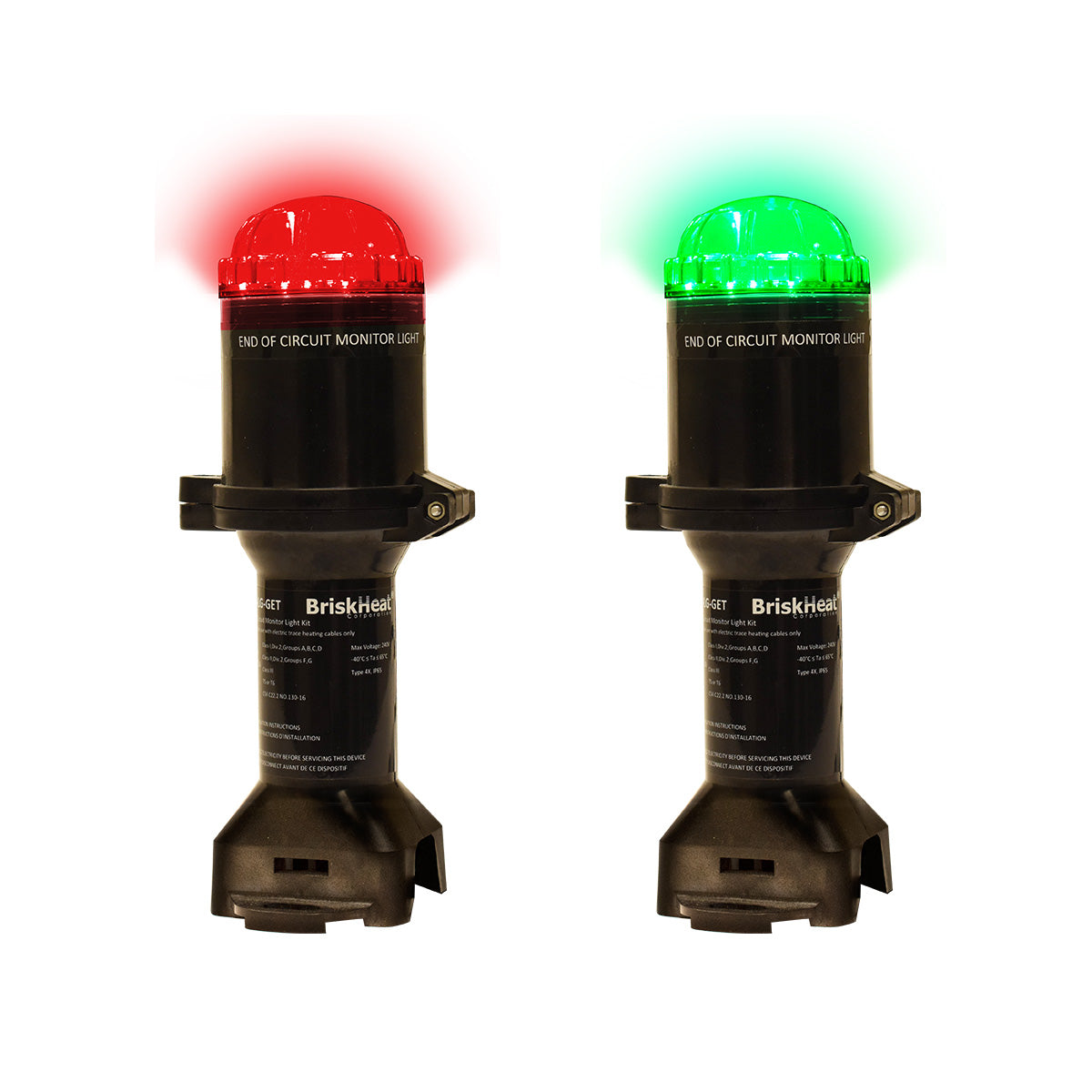

End of Circuit LED Monitor Light Kit Series
BriskHeat End of Circuit LED Monitor Light Kits are the ideal solution when working with large lengths of heat trace. This high-profile light with 360 visibility, indicates voltage at the end of the circuit. A super bright green/red light lets you know your heat trace cable is energized and working! Each kit can complete on end of circuit LED monitor light end seal termination.
- Rating: IP66/NEMA 4X
- Voltage: 240 VAC

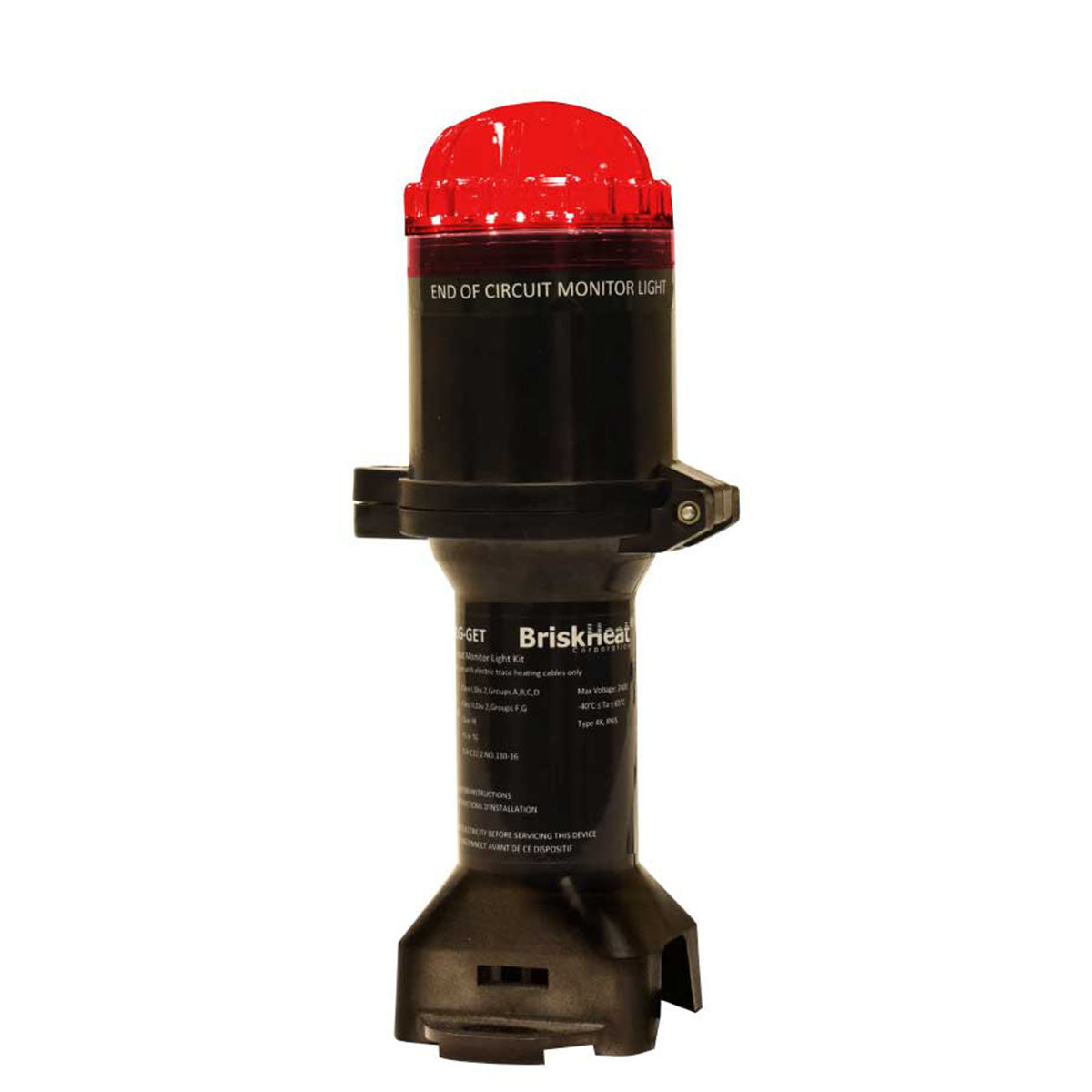

- Light Color: Red
Kit Contents:
1 - End seal stand and light assembly with O-ring and grommet
2 - 16-14 insulated parallel splice crimps
1 - Silicone lead termination boot
1 - Rubber strain relief grommet
1 - Pipe strap - for 2 in - 6 in (51 mm - 152 mm) O.D. pipes
1 - End seal label
Since 1949
Features:
- Approved for ordinary and hazardous locations
- Voltages up to 240 VAC
- Easy to install – hot work permit not required
- Easy re-entry for maintenance
- Compatible with up to 4 in (102 mm) of insulation and cladding
- Available Light Colors: Green or Red
Maximum Voltage: 240 VAC
Maximum Current: 32 amps
Lumen Output: 10 lumens
Construction: Non-conductive FRP plastic body
Overall Height: 8.2 in (208 mm)
Maximum Continuous Exposure Temperature (T5): 212°F (100°C)
Ambient Exposure Temperature Range: -40°F to 149°F (-40°C to 65°C)
IP Rating: IP66/NEMA 4X
Ordinary Locations (with SLCBL, SLMCBL, and SLHCBL heating cables)
Hazardous (Classified) Locations (with SLCBL heating cable only)
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 2, Groups E, F, G
- Class III
- T5: 3,5,8 watts/ft (10, 16, 26 watts/m). T6: 10 watts/ft (33 watts/m)
Approvals valid only when used with appropriate heating cable and installation accessories, and installed in accordance with all applicable instructions, codes, and regulations
