Low Temperature Self-Regulating Heating Cable (SLCBL)
Cut-to-length self-regulating heating cable (SLCBL) is ideal for freeze protection and low temperature process maintenance up to 150F (65C). Self-regulating heating trace cable self-regulates temperature by automatically adjusting heat output based on surface and ambient temperatures.
- Fluropolymer Jacket
- 8 W/ft (25 W/m)
- 120V
Since 1949
- Ideal for freeze protection, roof and gutter de-icing, snow melting systems, and low temperature process maintenance up to 150°F (65°C)
- Automatically adjusts heat output based on surface temperature
- Safe to overlap and insulate
- Can be cut-to-length and terminated in the field
- Moisture, chemical, and flame resistant
Specifications:
- Maximum Continuous Maintenance Temperature: 150°F (65°C)
- Intermittent Exposure Temperature Range: -40°F to 185°F (-40°C to 85°C)

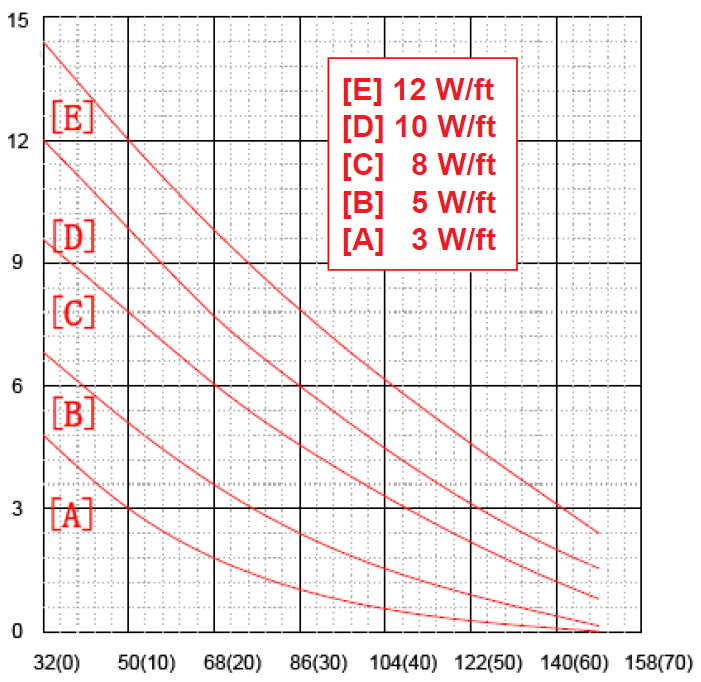

- Nominal Power Output at 50°F (10°C): 3, 5, 8, 10, 12 W/ft (10, 16, 26, 33, 39 W/m)
- Supply Voltages: 110-120 VAC or 208-277 VAC Bus Wire Gauge: 16 AWG
- Braid Resistance: Tinned copper 0.0055 ohms/ft (0.0182 ohms/m)
- T-Rating: T6: 3, 5, 8, 10 W/ft (10, 16, 26, 33 W/m)
- T5: 12 W/ft (39 W/m)
- Bend Radius: 0.5 in (12 mm)
NOTE: Electrical equipment T-Rating codes define the maximum surface
temperature that equipment will reach. It is used in hazardous (classified)
area applications.
- Ordinary Locations: -B, -BP series only
- Ordinary Locations
- Hazardous Location
- Class I Division 2 Groups A, B, C, D
- Class II Division 2 Groups E, F, G
- Class III
Approval valid only when used with appropriate heating cable and installation accessories, and installed in accordance with all applicable instructions, codes, and regulations.
Outer Layer Options:
|
Product Type |
Description |
Nominal Dimensions |
Shipping Weight 500-ft (152m) spool |
Purpose |
|
SLCBL-B |
Tinned Copper Metal Braid |
0.17” x 0.43” (4.4mm x 11.0mm) |
35 lb. (16 kg) |
Dry |
|
SLCBL-BP |
Tinned Copper Metal Braid with Thermoplastic Elastomer Overjacket |
0.23” x 0.50” (6.0mm x 12.6mm) |
46 lb. (21 kg) |
Wet or Weak |
|

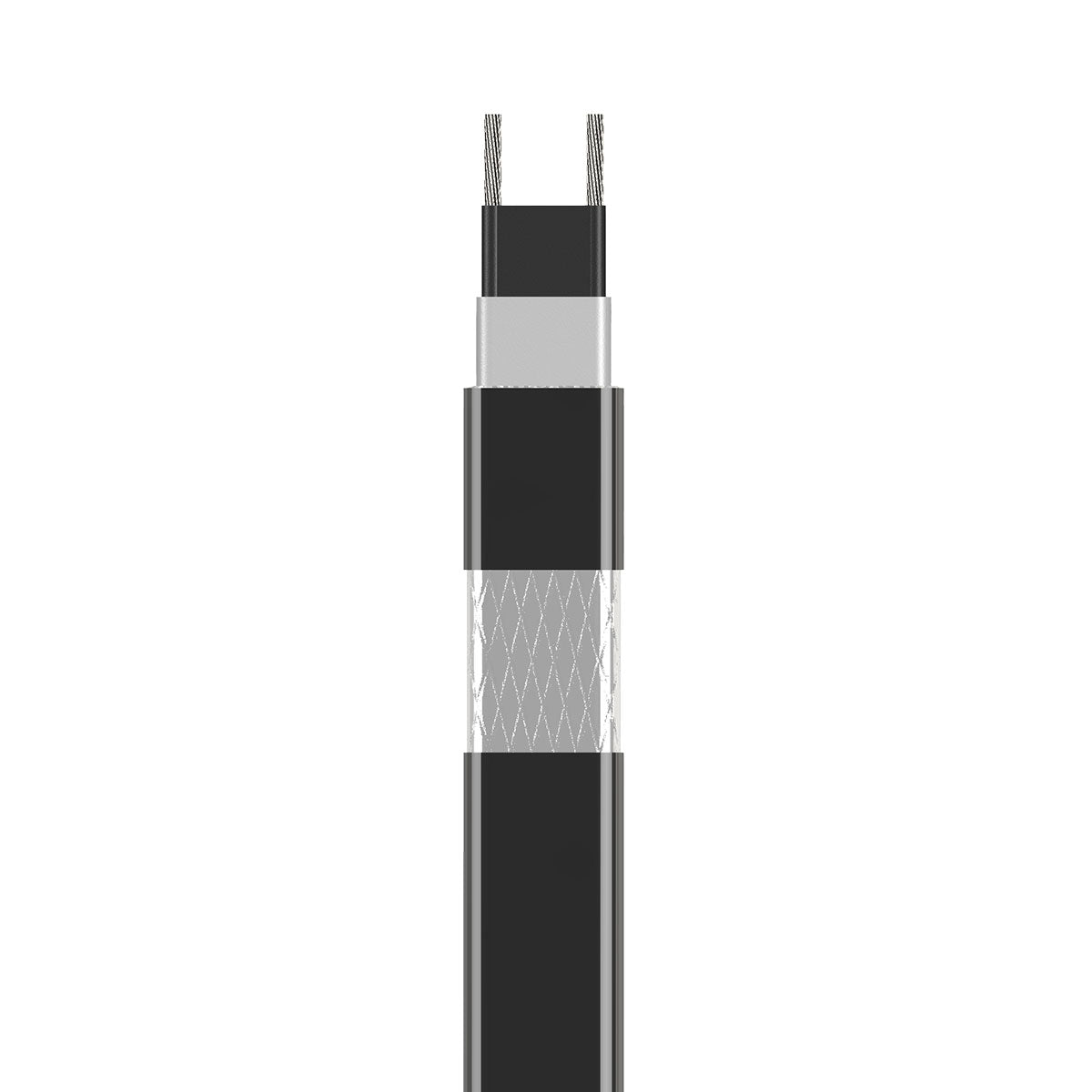

SLCBL-BF |
Tinned Copper Metal Braid with Fluoropolymer Overjacket |
0.21” x 0.47” (5.4mm x 12.0mm) |
44 lb. (20 kg) |
Wet or Harsh |
- The semi-conductive core material contains a graphite network, which allows electricity to flow from one bus wire to the other. When the core is dense and colder, there are many paths for electricity to take through the graphite network, producing more heat.
- Since the core material expands as it heats, the graphite network is elongated, disrupting some of the paths. More and more paths are disrupted as heating continues until the system reaches self-controlled thermal stability. When the core material cools, it contracts, reconnecting some of the electrical paths in the graphite network, and more equivalent heat is produced.
- This temperature response occurs independently at each point along the heater. If an externally produced high temperature occurs next to a low temperature in the cable, each section of heating cable will adjust its own heat output in relation to its own local requirements.
